CSU FURNITURE / HW & ACC

Hardware and Accessories

Movement, access and organization behind every front.

The CSU planning system accommodates hinges, lift systems, drawer runners, box systems, pocket solutions, internal dividers and selected kitchen accessories.

Explore 22 products
PRODUCT SCOPE

What this system
is designed to do.

  1. 01Soft-close hinge and lift systems
  2. 02Concealed runners and drawer boxes
  3. 03Pocket-door and handleless motion options
  4. 04Internal organization and dividers
  5. 05Corner and narrow-space accessories
HW & ACC PRODUCT DIRECTORY

4 product families.
22 specified modules.

Explore each cabinet family, then select a module for its function, dimensions, construction and planning details.

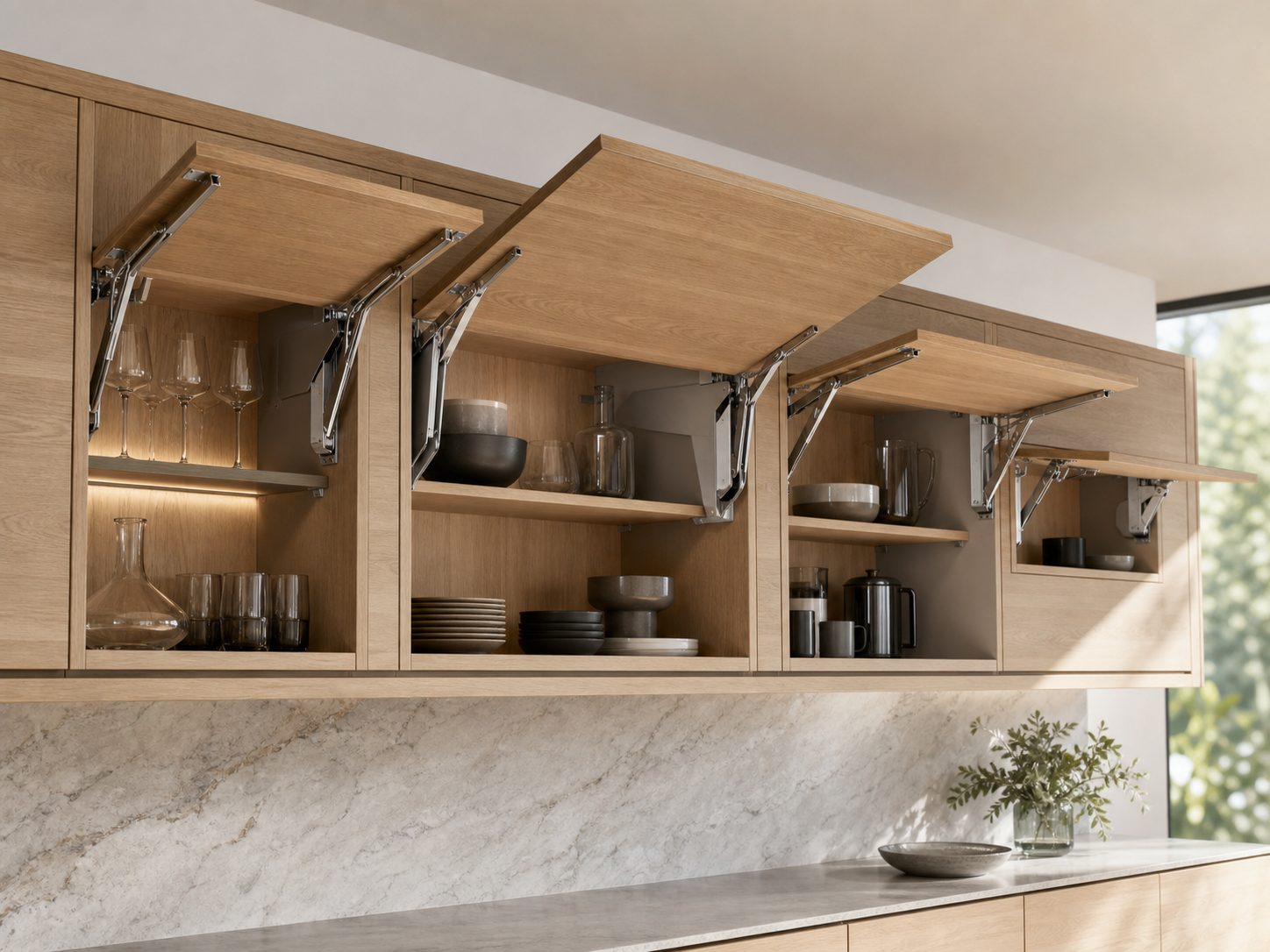

Lift & Pocket Door Systems kitchen scene
Lift & Pocket Door Systems · FAMILY 01
HW & ACC / 01

Lift & Pocket Door Systems

Mechanisms for overhead lift doors, folding fronts and concealed pocket-door applications.

HW02Lift systemsUp-and-over lift; cabinet height 13.78–17.72 / 17.72–21.26 inch; front weight 2–11.5 / 2.5–12.5 kg; soft-closeHW03Lift systemsLift-up front; cabinet height 11.81–13.35 inch; front weight 1.5–9 kg; one cross stabiliser required per setHW04Lift systemsStay lift; power factor 930–2,800; cabinet height 8.07–23.62 inch; width up to 70.87 inchHW05Lift systemsCompact stay lift; power factor 200–1,000; cabinet height about 9.45–23.62 inch; min. depth 4.92 inch without hanging bracketHW06Lift systemsFully integrated; power factor 930–2,800; cabinet height up to 23.62 inch; side panel 0.63–0.98 inch; min. internal depth 10.67 inch
Hinges & Concealed Movement kitchen scene
Hinges & Concealed Movement · FAMILY 02
HW & ACC / 02

Hinges & Concealed Movement

Hinge, soft-close and concealed movement systems selected by door weight and opening geometry.

HW07Pocket systemsSingle pocket door; installation width 17.72–35.43 inch; height 45.47–118.58 inch; front 0.71–1.02 inch; max 35 kg/front; pocket width 3.94 inchHW08Hinge systemsFull overlay; approx. 107° opening; front thickness 0.59–0.94 inch; integrated cup soft-close; tool-free CLIP connectionHW09Hinge systemsWide-angle full-overlay hinge; approx. 155° opening; front thickness about 0.63–1.22 inch; dark-furniture version
Drawer Runner Systems kitchen scene
Drawer Runner Systems · FAMILY 03
HW & ACC / 03

Drawer Runner Systems

Runner and box systems covering practical, premium and heavy-duty drawer applications.

HW10Runner systemsSingle extension; 19.69 inch nominal length; 30 kg load; concealed runner for wooden drawersHW11Runner systemsFull extension; 19.69 inch nominal length; 30 kg load; concealed runner for wooden drawersHW12Runner systemsFull extension; 19.69 inch; 40 kg load; synchronised running; 4D adjustment; tested for 100,000 cyclesHW13Runner systemsFull extension; 19.69 inch; 70 kg load; synchronised running; 4D adjustment; heavy-duty wooden drawersHW14Box systemsM height 3.58 inch; space requirement 4.25 inch; 19.69 inch nominal length; 40 kg load; 3D adjustmentHW15Box systemsE height 7.56 inch; space requirement 8.23 inch; 19.69 inch nominal length; 40 kg load; high-front pull-out with galleryHW16Box systemsM height 3.56 inch; space requirement 4.17 inch; 19.69 inch nominal length; 40 kg load; slim straight drawer sidesHW17Box systemsC height 6.97 inch; space requirement 7.6 inch; 19.69 inch nominal length; 40 kg load; high-front pull-outHW18Box systemsC height 6.97 inch; space requirement 7.6 inch; glass side elements included; 19.69 inch; 40 kg load

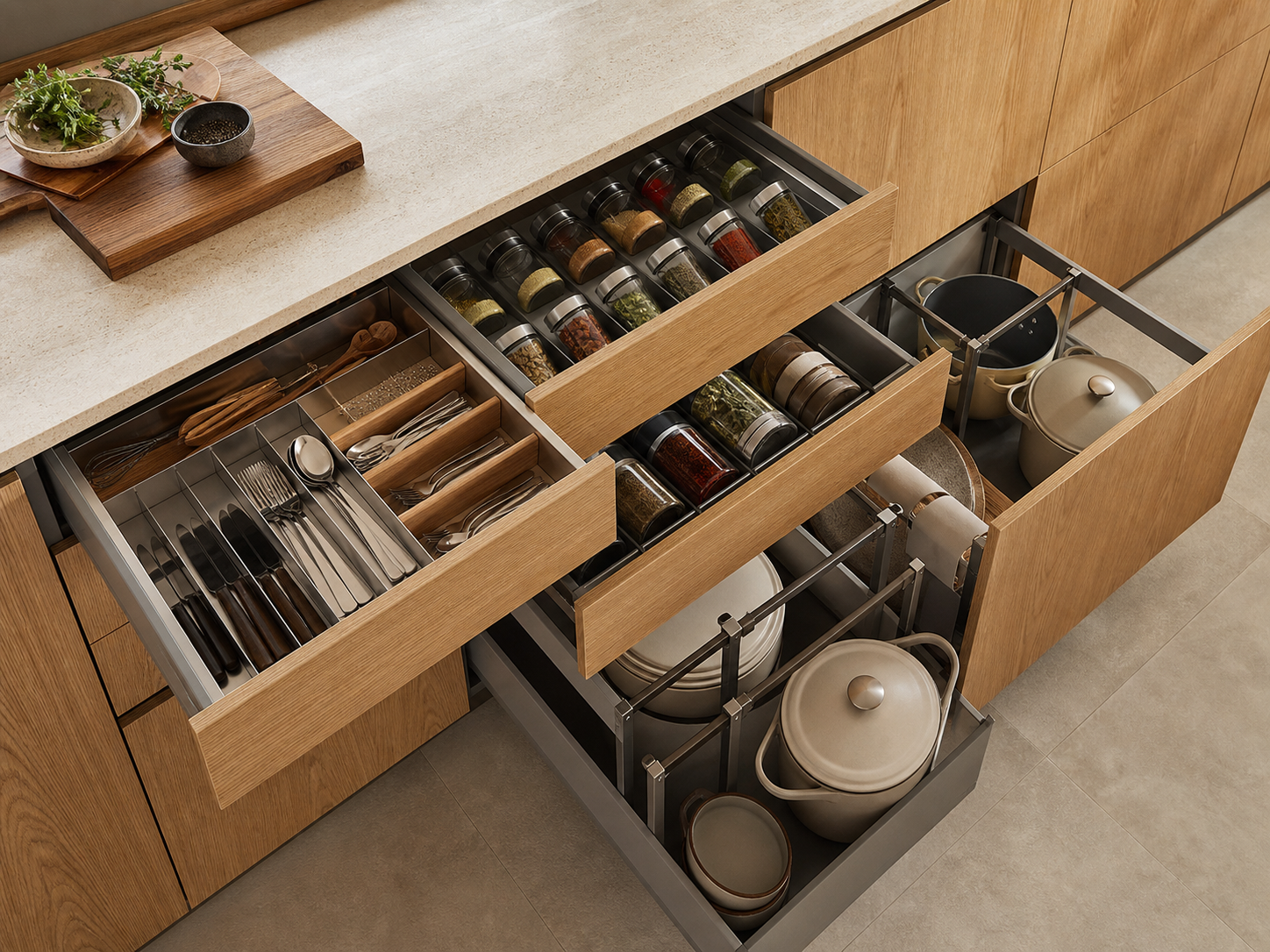

Interior Organisation kitchen scene
Interior Organisation · FAMILY 04
HW & ACC / 04

Interior Organisation

Pull-outs, dividers and storage accessories that complete functional cabinet interiors.

HW19Inner dividing systemsSize (17.8–18.74) × 4.25 × 2.58 inch; stainless steel; for wooden drawers on 19.69 inch TANDEM/MOVENTOHW20Inner dividing systemsSize 18.58 × 3.94 × 2.01 inch; steel frame; for LEGRABOX/MERIVOBOX; multiple coloursHW21Inner dividing systemsSize 18.58 × 3.94 × 1.96 inch; wood décor with steel frame; for LEGRABOX/MERIVOBOXHW22Kitchen accessoriesSpice holder; W20.2 × H80.2 × L32.2 inch; clear-access drawer organisationHW23Motion technologiesElectrical opening support for one drawer/SPACE TWIN; standalone set; no central transformer required; for handleless fronts
SIZE AND CONFIGURATION

Repeatable modules,
project-level precision.

Hardware is selected by door weight, cabinet geometry, load, opening motion and project budget. Brand-specific availability is confirmed before quotation.

PROJECT SUPPORT

What comes with
the conversation.

Motion requirement / load and cycle review / drilling data / accessory schedule / installation coordination

EXPLORE CSU SYSTEMS
KBCBase Cabinet SystemKWCWall Cabinet SystemKHCTall Cabinet SystemDNH / DWHDoor Fronts and Finishes
CSU FURNITURE / SPECIFICATION SUPPORT

Build the right
module schedule.

Request details
